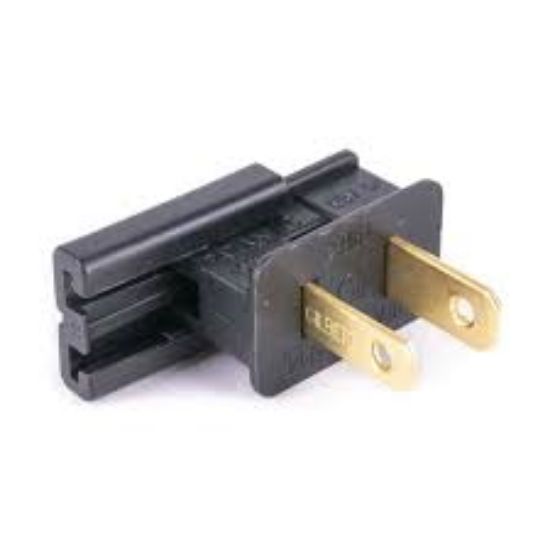

Edison Plugs Male Slide Black SPT-2

Also known as a vampire plug or a gilbert plug, this black male (pronged) replacement/retrofit plug is perfect for commercial lighting or unique custom designs. Made specifically for our SPT-2 Edison Bulb Cord, these slide plugs are made for harsh climate and heavy use. The simple slide back cover allows the prongs inside of the cap to connect with the wire safely. Simply slide the plug onto the end of the cord, being sure that the ribbed side of the cord lines up with the larger blade on the slide plug and sliding the wire as far as possible into the vertical channel of the plug, then push the backer on for a safe and secure connection.

Compatible with 16 gauge SPT2 cord and zip wire.

Easy 4 Step End-Plug Installation

1. Cut between the wires by about 1/4 of an inch
2. Locate the "ribbed" side of the wire. The ribbed side of the wire connects to the larger blade which is most often on the right side of the plug.
3. Place the wire as far down into the vertical channel as it will go. The ribbed side of the wire should go on the same side as the larger blade's connection pin.
4. Slide the back onto the plug. This allows the two contact points to penetrate the wire's insulation. The plug is now complete and ready to use!
